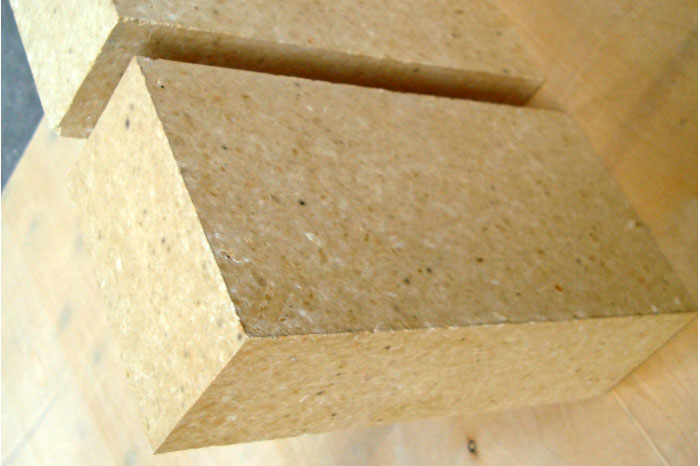

Anti Spalling High Alumina Brick
Other name: Anti Spalling High Alumina Brick for Rotary Kiln
Model Number: HCR-70, HCR-75, HCR-A
Certification: ISO 9001-14001
Minimum Order Quantity: 5 MT
Anti-spalling high alumina brick
Introduction
Anti-spalling high alumina brick is made of high-grade alumina bauxite clinker and ZrO2 sand, by high-pressure molding and high temperture sintered.
Advantages:
Strong anti-spalling ability, strong thermal shock resistance, low thermal conductivity, excellent erosion resistance
Application:
Pre-heating zone of cement kiln, lining of decomposition furnace, bottom area of the great cooler
Anti-spalling High Alumina Brick Physical and Chemical
| Item | HCR-70 (anti-spalling) | HCR-75 (anti-spalling) | HCR-A (wear-resisting) |
| Al2O3 min% | 70 | 78 | 80 |
| ZrO % | 6-7 | - | - |
| Fe2O3 % ≤ | 2 | 2.3 | 2.5 |
| Bulk Density g/cm³ | 2.5 | 2.5 | 2.55 |
| Cold Crushing Strength Mpa ≥ | 50 | 65 | 80 |
| Refractoriness under load of 0.2Mpa(℃) | 1470 | 1490 | 1510 |
| Refractoriness (℃) min | 1790 | 1790 | 1790 |
| Apparent porosity MAX % | - | - | 18 |
| Linear change on reburning % | +0.2-0.3 | -0.3 | -0.2 |
| Thermal shock stability > | 30 | 25 | 15 |
